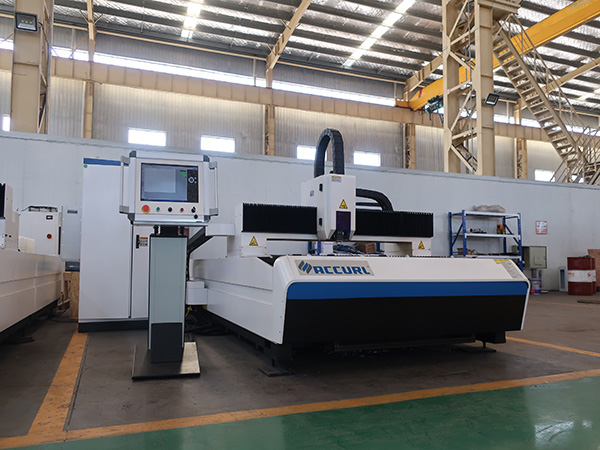

cnc 1000w талшықты-лазерлі кесу машинасының бағасы

CNC 1000w талшықты-лазерлі кесу машинасының бағасы

Ерекшеліктер


Кесу алаңы: 1500 * 3000мм
Cutting Speed:1-8000mm/min
Қолдау көрсетілетін графикалық пішім: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:Laser Cutting, Metal sheet cutting
Шарт: Жаңа
Кесу қалыңдығы: 0-30 мм
CNC or Not:Yes, CNC
Салқындату режимі: суды суыту
Control Software:YASKAWA/EMPOWER
Шығарылған орны: Anhui, China (Mainland)
Сертификаттау: CE, ISO, SGS
Кепілдік: 2 жыл
Product name:CNC Sheet Metal Laser Cutting Machine Price/Fiber Laser Cutting
Кесу материалы: Металл баспайтын болат көміртекті болат алюминий
Servo motor:YASKAWA
Laser head:Lasermech

Өнім Сипаттамасы


Талшықты лазерлі кесу машинасы

Fiber laser cutting works by focusing the power of a high-power laser onto the surface of the material to be cut.

The energy in the laser beam is absorbed into the surface of material, and the energy of the laser is converted into heat, which melts or vaporizes the material.

Additionally, gas is focused or blown into the cutting region to expel or blow away the molten metal and vapor from the cutting path.
Choosing a Fiber laser cutting system will provide a number of advantages over traditional CO2 lasers, because of their high quality beam, Fiber lasers will allow you to cut, engrave and mark a wide range of metallic materials.

Our range of Fiber machines can be specified in a variety of power outputs ranging from 500W and up - which will provide you with a machine capability of cutting sheet metals such as 12 mm thick stainless steel depending on the machine power.

Technical Parameter




NO
NAME
Value
Бөлім
1
Max. working area (length×width)
3000×1500
мм
2
X axis cutting length
1550
мм
3
Y axis cutting width
3050
мм
4
Z axis Lifting Distance
120
мм
5
X / Y осінің орналасу дәлдігі
0.05
мм / м
6
X,Y осінің қайталанатын орналасу дәлдігі
± 0.02
мм
7
Максималды жылдамдық
90
m/min
8
Жұмыс істейтін макс. Жеделдету жылдамдығы
0,5G
9
Total power protection grade
IP54

Негізгі ерекшеліктері


1. With dual-drive Gantry mechanisms, imported rack, pinion and linear guide for high speed steady transmission and high precision
2. Жалпы болат дәнекерлеу аппараты, күйдіруден кейін өрескел өңдеу.
3. Cooperated with vibration aging treatment to eliminate the stress of the welding and machining, maintained long term using without deformation.
4. Жұмыс кезінде жауап беру жылдамдығы мен төсек орнықтылығын айтарлықтай жақсарту.
5. Japan imported servo motor for the X, Y, Z axis, high precision, high speed, high torque, large inertia, performance is stable and durable.
6. Сервомотор комбинациясы машинаның жоғары жылдамдығы мен үдеуін қамтамасыз етеді.
7. Based on the Windows operating system of fiber laser cutting machine CNC system, integrates a number of laser cutting control specific modules for better function.
8. Ең жақсы адам-компьютер интерфейсі, басқару оңай.
9. With U. S. Lasermech produced special cutting head, and capacitive sensing, high precision induction and responsive for the most stable and reliable performance.

Typical Fiber Laser Cutting Applications


Precision engineering.
High precision sheet metal profiling.
Cutting metallic and non-metallic products.
Marking components for tractability, serial no. plates, ID plaques, VIN Numbers.

Industry Sectors Applied to


Medical
Automotive
Aerospace
Aviation
Marine Engineering
General Manufacturing
